CU-M2M
ULTRA
SMALL
CARDIOID
MIC
NEW –CU-M2M Ultra Small Unique Cardioid Microphone
(Preliminary Product Information – Available Spring 2026)
Only 3″ High
The new CU-M2M has a perfect cardioid pattern, high sensitivity, high SPL capability, low proximity and great value for money, providing engineers and musicians with an accurate and pure sound from a very small footprint.
The new CU-M2M is another unique mic from the Sanken Chromatic range. It is an ultra-small high-quality cardioid microphone perfect for music recording and voice recording.
It is designed to deliver superb performance from a small mic where quality of the audio is a factor.
SPECIFICATIONS
|
Model Name |
CU-M2M |
|
Transducer |
Self-Polarized Condenser |
|
Directivity |
Cardioid |
|
Frequency response |
20Hz – 20kHz |
|
Sensitivity (nominal at 1kHz) |
-28dB (39.8 mV), (0dB=1 V/Pa) |
|
Equivalent noise level |
17dB SPL (A weighted) |
|
Max SPL(1% THD) |
135dB SPL |
|
Output impedance( 1kHz ) |
140 ohms |
|
Powering |
+48V phantom ±4V U.P.F |
|
Current consumption |
2.4mA (typical) |
|
Weight Microphone |
47g/ 1.7oz |
|
Dimensions Microphone |
76mm x 19mm(D) |
|
Surface finish |
Matte black |
|
Connector |
XLR-3M |

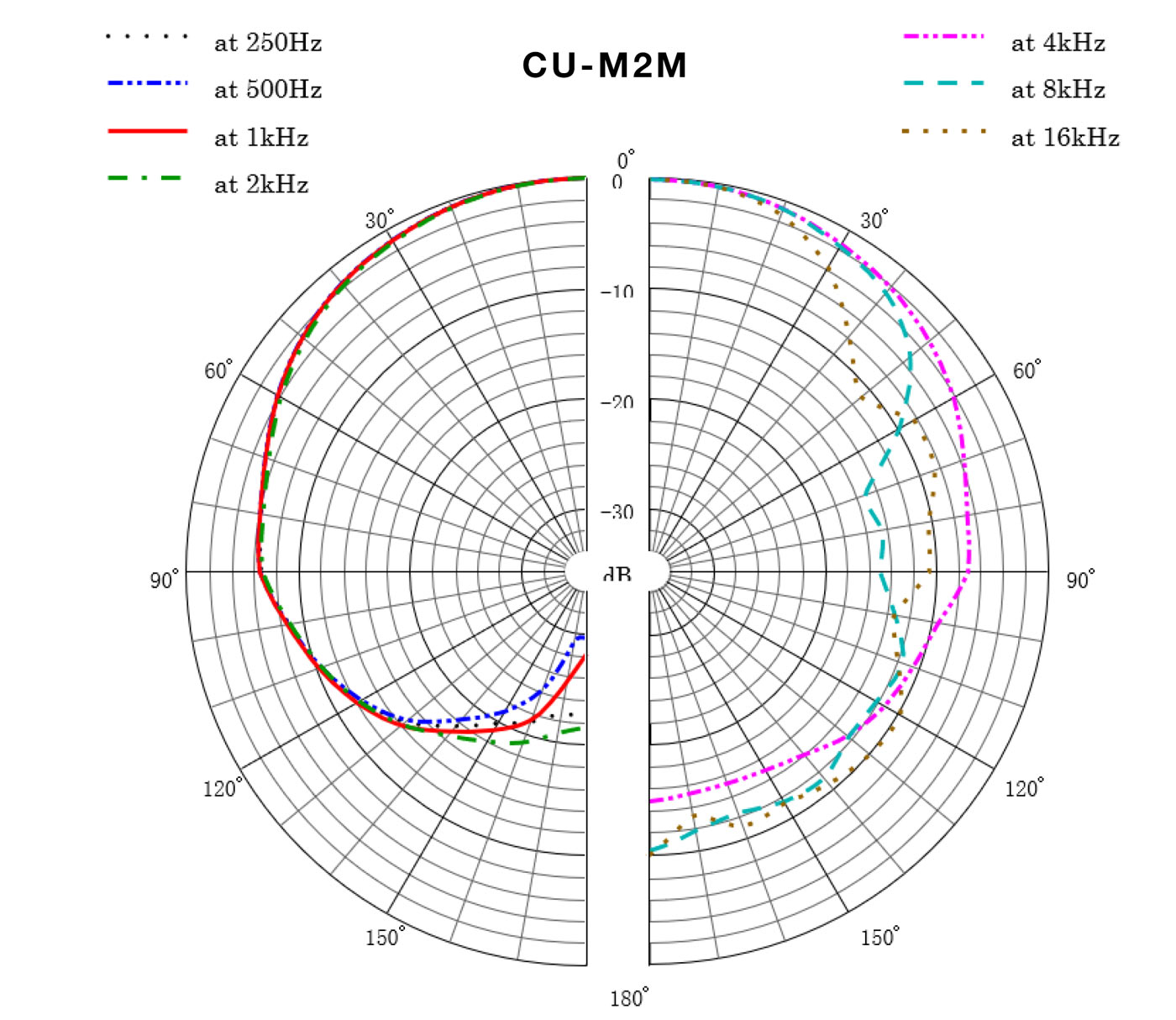

POLAR PATTERN
FREQUENCY RESPONSE
ACCESSORIES
CU-M2M Included Accessories:
Vinyl Case
CU-M2M Optional Accessories:
